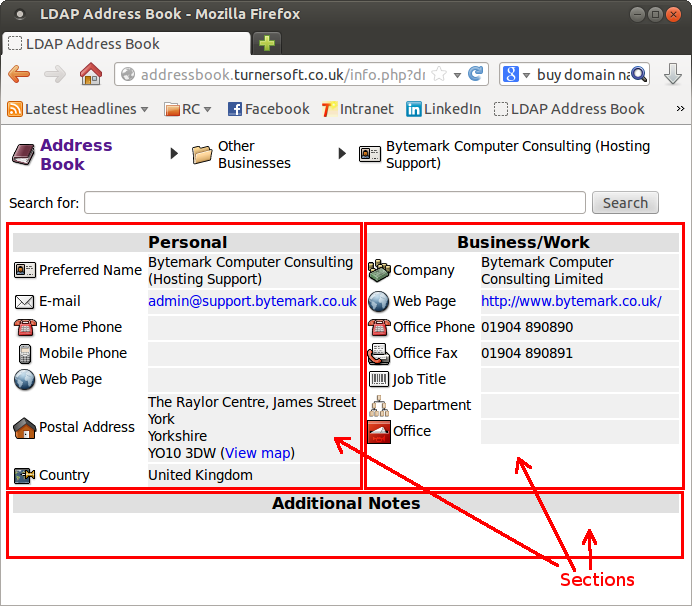

   5. Changing the layout and attributes shown for directory entries
   6. Displaying thumbnail photos or logos when browsing/searching the directory
   7. Setting up phone numbers to be dialed when clicked on
   8. Changing the links shown in the page footer
   9. Changing the look and formatting of the address book
   10. Changing the country code interpretation
   11. Extending and modifying the schema
   12. Using auxiliary object classes
5. Linking External Records to the Address Book
   1. Linking to additional records within a single LDAP server

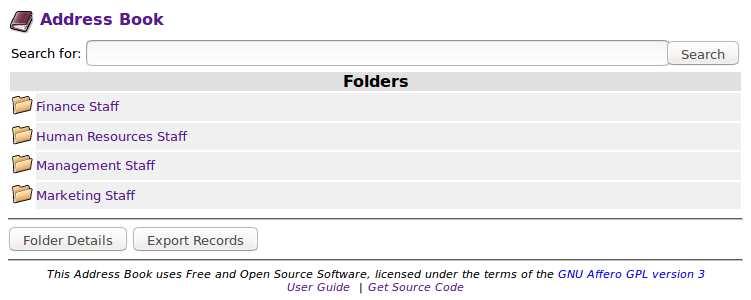

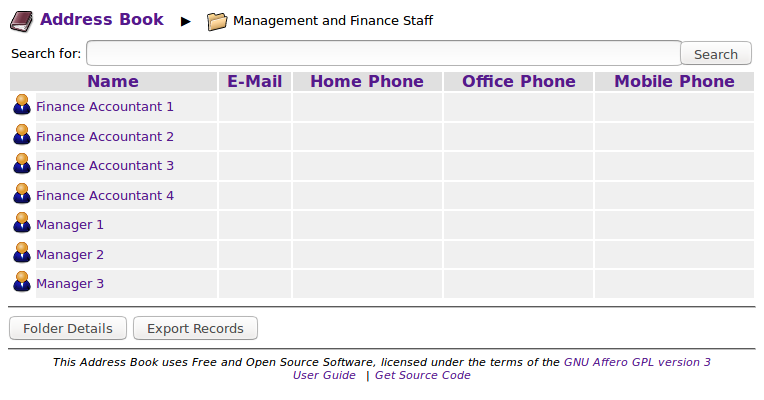

   2. Creating a multi-directory Address Book
      1. Connecting to additional servers
      2. Defining users and permissions for each server
      3. Configuring the address book structure
   3. Troubleshooting
6. Configuration Reference

Getting Started Using the Address Book

LDAP Address Book is a web application for browsing and searching for contact details within an LDAP directory service, allowing it to be used as an address book. It has been tested on the following LDAP directories:

• Active Directory (Microsoft and Samba implementations)
• Novell eDirectory
• OpenLDAP

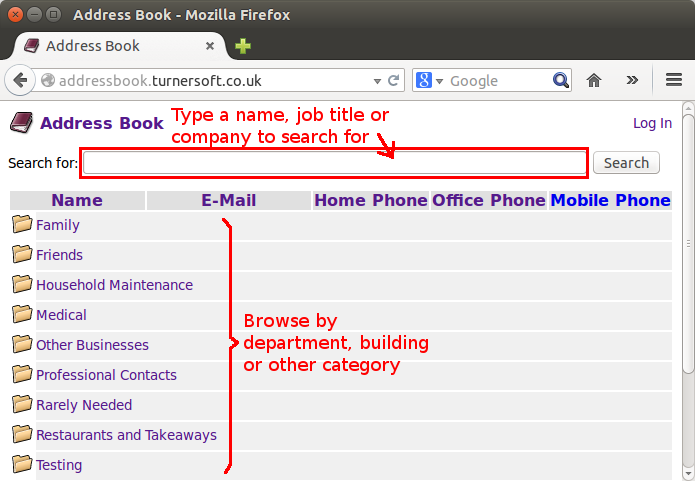

Searching your LDAP address book is pretty easy. Just type in the name, job title or company of who you're trying to find into search box and click "Search" (or press Return). Alternatively if the directory has been classified into "organizational units" (OUs) you can click on the folders underneath the search box to browse records by department, building, etc.

You can add the LDAP Address Book as a search engine in Firefox, Google Chrome/Chromium and other OpenSearch compliant web browsers, allowing you to search more easily.

Mozilla Firefox Search Integration

To add the Address Book as a search engine in Firefox:

1. Open web browser and navigate to the address book.
2. Click the icon to the left of the search engine name in the search box.
3. Select Add "Address Book" (or the name of your address book, if it has been changed from the default) from the menu.

Google Chrome/Chromium Search Integration

To add the Address Book as a search engine in Google Chrome or Chromium:

1. Open web browser and navigate to the address book.
2. Chromium/Google Chrome will automatically add the LDAP Address Book to the available search engines.

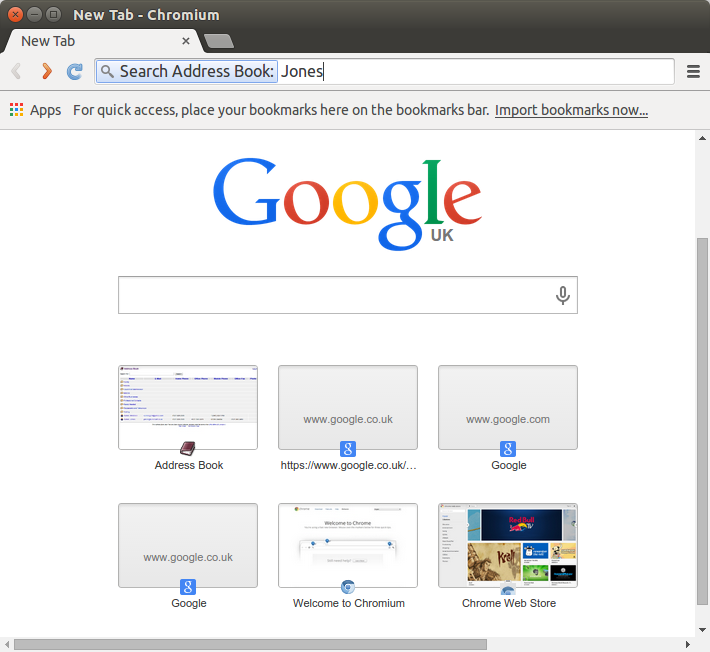

To search the Address Book, first enter the first few characters of the site URL, then press Tab when prompted.

Now enter the name you wish to search for.

Installation and Basic Setup

The remainder of this document is aimed towards system administrators setting up and configuring LDAP address book on your network.

Upgrading from Previous Versions

The general method of upgrading to a new version of the Address Book is to replace the application's program files with those from the new release.

In many cases your previous configuration (stored in file config.php) can be reused with only minor changes (if any). Details of what needs to be done for each version can be found on the project Wiki:

https://sourceforge.net/p/ldap-addr-book/wiki/Home/

This information is available for version 0.10 and later.

Installation on Linux

LDAP Address Book requires a number of packages to be installed in order to run - primary a web server, PHP and a number of PHP add-on modules. The following table shows the commands to install these prerequisites for a number of common web servers and Linux distributions.

Next, decide where you want to store the address book web site's files and unpack the address book tar.gz file to the web site directory. For the purposes of this guide, this location is assumed to be /srv/www/addressbook.example.org and the URL of the address book http://addressbook.example.org/, in which case you might type:

mkdir -p /srv/www/addressbook.example.org
cd /srv/www/addressbook.example.org
tar xvzf ~/ldap-addr-book-0.02.tar.gz

You'll probably need to create a DNS record for the address book web site, for example:

addressbook.example.org.	IN	CNAME	myserver

The procedure for setting up the web site varies according to the Linux distribution and web server software being used. Once your web server has been configured, opening the Address Book's URL should display the following message:

Apache HTTP Server on Ubuntu 12.04 and similar Debian derivatives

Create the file /etc/apache2/sites-available/addressbook.example.org and add the following contents:

<VirtualHost *:80>
        DocumentRoot /srv/www/addressbook.example.org
        ServerAdmin webmaster@example.org
        ServerName addressbook.example.org

        ServerSignature email
        DirectoryIndex index.html index.php

        LogFormat "combined"
        TransferLog /var/log/apache2/addressbook.example.org-access_log
        ErrorLog /var/log/apache2/addressbook.example.org-error_log
</VirtualHost>

Enable the site by running the command:

a2ensite addressbook.example.org

Perform a graceful restart of Apache in order to re-read the configuration and make the new web site live:

apache2ctl graceful

Installation on Windows: Apache HTTP Server or Microsoft IIS

In outline, the procedure to set up the LDAP Address Book to run under Windows is as follows:

• Install preferred web server (e.g. Apache HTTP Server or Microsoft IIS).
• Download PHP 5, e.g. from http://windows.php.net/download/ or a trusted mirror.
• Install PHP 5, ensuring that LDAP and INTL support are both enabled.
• Set up a new virtual host or folder for the Address Book and extract the install media to it.
• If necessary, create a DNS record for the address book web site.

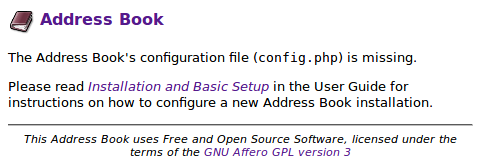

Once your web server has been configured, opening the Address Book's URL should display the following message:

Set up access to the directory service

First, copy (or rename) the sample configuration file supplied with LDAP Address Book, config.php.sample to config.php.

Open the file in your preferred text editor and change the $ldap_server setting to tell the application where your Address Book data is stored. You'll need to specify:

• The type, host name and (optionally) port number of the LDAP directory server (domain controller) to connect to.
• The location in the directory (e.g. OU) that should be used as the "root" of the address book information.

Below is an example $ldap_server setting:

$ldap_server = new ldap_server(
        "openldap",                             // LDAP server type
        "OU=People,DC=example,DC=org",          // DN of address book
        "ldap.example.org",                     // host name/IP address/URL
        389                                     // port number
        );

See the Configuration Reference section below for further information on these and other settings.

Note: Windows users may experience problems opening the config.php file using the default "Notepad" text editor. Try downloading and using Notepad++ instead, which should be able to open and edit the file correctly.

Some LDAP directory servers will allow limited read access without having to enter any user name or password (known as allowing "anonymous bind" access). If your directory is set up to allow this then you should be able to open the LDAP Address Book in your web browser and view its contents.

Note: Anonymous access may have very limited read permissions. Some attributes (e.g. telephone numbers) may appear blank unless you log in by name.

If anonymous access is not allowed then you'll get the message "Please log in to use the address book" when you open the LDAP Address Book in your web browser.

The LDAP Address Book will need at least one user login account on the directory service in order to access its contents. This can be either:

• A generic "anonymous" user account, which is used automatically. This typically provides read-only access for searching or browsing records.
• Individual (named) login accounts. These can be given additional permissions, e.g. creating and editing of records.

If you just want to get the LDAP Address Book up and running quickly, set up a new user account that provides read-only access to your directory, open the config.php in your preferred text editor and locate the following section:

$ldap_server->add_user("__ANONYMOUS__",
        array(
                // LDAP login (or bind DN) to connect to the directory
                //
                // If the LDAP server is set up to allow "anonymous bind"
                // then the the user name and password can be left blank,
                // otherwise replace with a "generic" user that has read
                // permission.

                "ldap_dn"=>"",
                "ldap_password"=>"",

                // Permissions granted to anonymous users:

                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true
        ));

Fill in the values of "ldap_dn" and "ldap_password" with the user account's DN and password. Once the details are correct you should be able to open the LDAP Address Book in your web browser and view its contents.

The section What is an LDAP distinguished name (DN)? (below) gives more information about LDAP DNs and how to fill in the ldap_dn setting correctly. It is also possible to configure individual logging in with individual user names and passwords - see Configuring Users and Permissions for more information.

What is an LDAP distinguished name (DN)?

You'll need to use LDAP distinguished names (DNs) in a few places when configuring the LDAP Address Book:

• To specify which part of the LDAP directory contains the Address Book data.
• When setting up users and permissions.

This section gives a brief overview of what a DN is and how to find which DNs to use when configuring the Address Book.

LDAP records are organized into a "directory information tree" (DIT) of categories and subcategories - similar to how files and folders (directories) are stored on a computer's hard disc.

Each record in the directory is identified by it's name and location within the tree - known as its "Distinguished Name" or DN. A distinguished name consists of a comma-separated representing the "navigation path" through the tree to the object. Here's an example:

CN=John Doe,OU=Friends,O=BigCorp

Each item in the list is represented by an attribute and its value. In the above example:

• "CN=John Doe" means the the object's CN (common name/full name) attribute has the value "John Doe".
• "OU=Friends" means that the OU (organizational unit name) attribute of the location that contains the "John Doe" record has the value "Friends".
• "O=BigCorp" means that the O (organization name) attribute of the location that contains "Friends" has the value "BigCorp".

The attribute used to identify each item varies according to its type, for example:

• People are generally identified by their full name (or "common name", CN).
• People within an organization's LDAP directory are often grouped into departments or divisions, identified by their "organizational unit name" (OU).
• A company or other organization is identified by its "organization name" (O).

Here's how to work out the DNs from the graphical admin tools for Microsoft Active Directory and Novell eDirectory.

DNs as shown in Active Directory Users and Computers

The Active Directory Users and Computers admin tool shows the LDAP directory tree in the left-hand panel of its window. Icons are used to represent the type of each object.

The top-level object shown in Active Directory Users and Computers is the domain. The name of the domain is shown as a series of elements separated by dots (e.g. turnersoft.co.uk), however this is not the domain's LDAP distinguished name. Each element of the domain name is represented as a separate domain component (DC) in LDAP notation:

DC=turnersoft,DC=co,DC=uk

The second-level elements within the domain include organizational units (shown with a folder icon overlaid with a book/grey blob) and containers (shown as a folder icon without a book).

The DN of the "Home" organizational unit in the above screenshot is:

OU=Home,DC=turnersoft,DC=co,DC=uk

If you wanted the LDAP Address Book to show only the contents of the "Home" organizational unit, you might configure the $ldap_server setting (in config.php) as follows:

$ldap_server = new ldap_server(
        "ad",                                   // LDAP server type
        "OU=Home,DC=turnersoft,DC=co,DC=uk",    // DN of address book
        "dc1.turnersoft.co.uk",                 // host name/IP address/URL
        389                                     // port number
        );

Containers are similar to organizational units, but are named using their CN (common name) attribute. The DN of the "Users" container is:

CN=Users,DC=turnersoft,DC=co,DC=uk

Users are named using their CN (common name) attribute. For example, the DN of the Administrator user for this domain is

CN=Administrator,CN=Users,DC=turnersoft,DC=co,DC=uk

LDAP Address Book also allows you to specify an Active Directory user by their User Principle Name (UPN), i.e. their user login name followed by @ followed by the domain's DNS name (or other allowed UPN suffix, if any have been configured). This allows a user to be specified independently of its position in the directory information tree.

The Administrator user for this domain has the UPN:

Administrator@turnersoft.co.uk

DNs as shown in Novell iManager or ConsoleOne

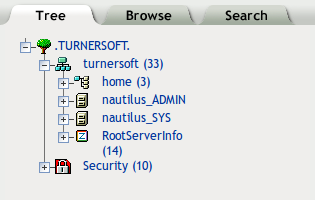

The iManager and ConsoleOne admin tools also show the LDAP directory structure as a tree of objects. As with Active Directory Users and Computers, icons are used to represent the type of each object.

The top-level object is the tree, which is not included in the LDAP DN. The DN of the "turnersoft" organization in the above screenshot is:

o=turnersoft

The DN of the "Home" organizational unit in the above screenshot is:

ou=home,o=turnersoft

Users are named using their CN (common name) attribute. For example, the DN of the "admin" user for this tree is:

cn=admin,o=turnersoft

Configuring Users and Permissions

The LDAP address book supports logging in with named user accounts. Typically, this is used by administrators who are permitted to edit the address book contents, or if you need to limit browsing/searching access to known users.

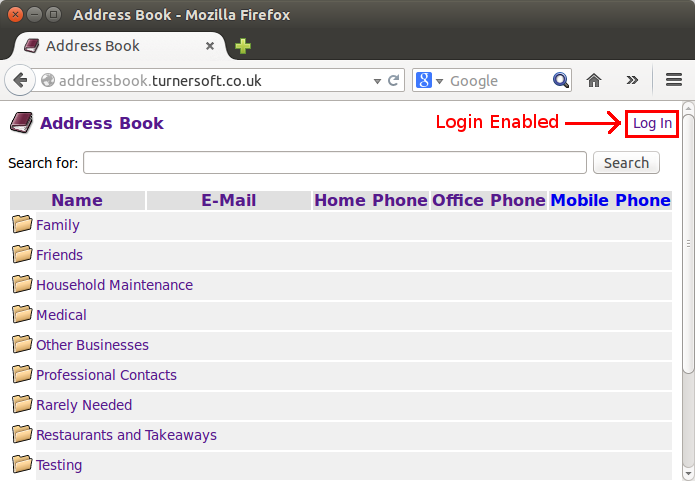

Once per-user access has been set up, users can log in with their own user names and passwords by clicking the "log in" link in the top-right corner of each page. (This link is not displayed if only anonymous access has been configured.)

User login names, passwords and permissions are taken from the LDAP directory itself rather than the address book application.

LDAP does not provide any (standard) way of retrieving a user's permissions, so the $ldap_server->add_user() configuration command should be used to tell the Address Book which facilities should be made available to each user. within the back-end directory.

Three types of user mapping can be defined:

• The special user name __ANONYMOUS__ is used to specify the LDAP credentials to be used and permissions to be given when nobody is logged in by name. (If the __ANONYMOUS__ user is not configured then all users will have to log in by name in order to browse the directory. If it is used, the __ANONYMOUS__ user should be given read-only access.)

• The special login name __DEFAULT__ is used to specify the permissions to be given when a user has logged in by name.

• An individual user's login name can be assigned a different set of permissions to those granted to __DEFAULT__. This is typically used when setting up an "admin" user for the address book.

The following settings can be applied to each user map entry in order to enable or disable various features of the address book. To use each feature, the necessary permissions will also need to be granted within the back-end directory.

Require users to log in with a user name and password

The following example shows how to grant all logged in users permission to browse, search or view the Address Book (assuming the __ANONYMOUS__ user has been disabled or removed from the configuration):

$ldap_server->add_user("__DEFAULT__",
        array(
                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true
        ));

Only allow users in a particular OU to log in

The following example shows how to allow only those users in a particular OU to log in to browse, search or view the Address Book:

$ldap_server->add_user("__DEFAULT__",
        array(
		"ldap_dn"=>"cn=__USERNAME__,dc=home",
                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true
        ));

Grant additional permissions to a specific user

The following example shows how to grant additional permissions to a specific user. The user name "admin" will be logged in using with Active Directory UPN Administrator@example.org (the default domain administrator).

$ldap_server->add_user("__DEFAULT__",
        array(
                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_folder_info"=>true
        ));
$ldap_server->add_user("admin",
        array(
                "ldap_dn"=>"Administrator@example.org",
                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_create"=>true,
                "allow_edit"=>true,
                "allow_delete"=>true,
                "allow_export"=>true,
                "allow_export_bulk"=>true
        ));

Permissions granted to a user by name will be used instead of the __DEFAULT__ permissions. In the above example, admin will not receive the allow_folder_info permission.

Grant permissions based on LDAP group membership

Permissions can be granted to an LDAP group using the $ldap_server->add_group() configuration command. Members of the group will receive the group's permissions. In the following example, logged in users will receive permissions to browse, search and view the Address Book. Users who are members of the Address Book Admins are also granted permission to create, edit and delete records.

$ldap_server->add_user("__DEFAULT__",
        array(
                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true
        ));

$ldap_server->add_group("cn=Address Book Admins,ou=HR,o=BigCorp",
        array(
                "allow_create"=>true,
                "allow_edit"=>true,
                "allow_delete"=>true
        ));

Alternatively, permissions can be granted according to LDAP group membership by specifying the group name as the permission's value. The following example shows how to use this method:

$ldap_server->add_user("__DEFAULT__",
        array(
                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_create"=>"cn=Address Book Admins,ou=HR,o=BigCorp",
                "allow_edit"=>"cn=Address Book Admins,ou=HR,o=BigCorp",
                "allow_delete"=>"cn=Address Book Admins,ou=HR,o=BigCorp"
        ));

Note:

• The user must be have sufficient access the back-end directory to read the group membership.
• Group memberships cannot be used to assign permissions for the __ANONYMOUS__ user.

The $group_member_attributes setting is used to define which attributes of a group are checked in order to determine whether the user is a member:

$group_member_attributes = array("member","roleOccupant","memberUid");

The various group membership attributes allows different types of object to be used to represent roles and permissions:

Grant access to the Address Book based on LDAP group membership

The allow_login permission can be used to decide whether users will be allowed to log in to the address book. It is automatically granted if not explicitly defined. The following example shows how to grant login permission based on group membership:

$ldap_server->add_user("__DEFAULT__",
        array(
                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_login"=>"cn=Address Book Users,ou=HR,o=BigCorp"
        ));

Deny access to the Address Book for a specific user

A specific user can be prevented from accessing the address book (whilst continuing to allow others to log in) by setting their "allow_login" permission to "false". For example, the following might be used to prevent the directory's top-level administrative account from being (mis)used to browse the address book:

$ldap_server->add_user("Administrator",array("allow_login"=>false));

Changing the user DN search behavior

The LDAP Address Book searches the directory in order to determine a user's DN during the login process.

By default, the Address Book will search for login user accounts in the same area of the directory as the address book data (i.e. under the location indicated by $ldap_server->base_dn). If you wish to store the login accounts in a different location outside of this area (e.g. for security reasons) then the setting $ldap_server->dn_search_base can be used:

$ldap_server->dn_search_base = "CN=Users,DC=example,DC=org";

Searching is carried out using an anonymous connection by default. The $ldap_server->dn_search_user and $ldap_server->dn_search_password settings can be used to specify a different account to use when searching for a user's DN:

$ldap_server->dn_search_user = "CN=ldap-browse,OU=Service Accounts,DC=example,DC=org";
$ldap_server->dn_search_password = "foobar";

Customizing the Address Book

Changing the attributes used for searching

The fields/attributes that are used when searching can be customized by editing the contents of $search_ldap_attrib in the configuration file. The default setting is:

$search_ldap_attrib = array(
        "cn","mail","sn","displayName","company","title");

...which searches the following set of attributes:

See your directory service's schema documentation for other attributes which are available to be searched.

Changing the columns shown for lists of directory entries

You can change the columns/attributes used to display directory entries in a list using the configuration function set_display_columns():

$ldap_server->set_display_columns("*",
        array(
                array("caption"=>"Name",                "attrib"=>"sortableName",       "link_type"=>"object"),
                array("caption"=>"E-Mail",              "attrib"=>"mail",               "link_type"=>"mailto"),
                array("caption"=>"Web Site",            "attrib"=>"wWWHomePage",        "link_type"=>"url"),
                array("caption"=>"Office Phone",        "attrib"=>"telephoneNumber",    "link_type"=>"phone_number"),
                array("caption"=>"Mobile Phone",        "attrib"=>"mobile",             "link_type"=>"phone_number")
                )
        );

The special attribute sortableName can be used to display a "sort-friendly" version of a personal name (Surname, Firstname) where this information is available. (This is constructed from the sn and givenName attributes if populated, otherwise falling back to displayName and cn.)

You can display different sets of columns for specific areas of your directory - for example you may want to display different columns for "Staff" and "External Contacts" OUs:

$ldap_server->set_display_columns("ou=Staff",
        array(
                array("caption"=>"Name",                "attrib"=>"sortableName",       "link_type"=>"object"),
                array("caption"=>"E-Mail",              "attrib"=>"mail",               "link_type"=>"mailto"),
                array("caption"=>"Home Phone",          "attrib"=>"homePhone",          "link_type"=>"phone_number"),
                array("caption"=>"Office Phone",        "attrib"=>"telephoneNumber",    "link_type"=>"phone_number"),
                array("caption"=>"Mobile Phone",        "attrib"=>"mobile",             "link_type"=>"phone_number"),
		array("caption"=>"Employee ID",         "attrib"=>"employeeNumber",     "link_type"=>"none")
                )
        );

$ldap_server->set_display_columns("ou=External Contacts",
        array(
                array("caption"=>"Name",                "attrib"=>"sortableName",       "link_type"=>"object"),
                array("caption"=>"E-Mail",              "attrib"=>"mail",               "link_type"=>"mailto"),
                array("caption"=>"Office Phone",        "attrib"=>"telephoneNumber",    "link_type"=>"phone_number"),
                array("caption"=>"Mobile Phone",        "attrib"=>"mobile",             "link_type"=>"phone_number"),
                array("caption"=>"Office Fax",  "attrib"=>"facsimileTelephoneNumber",   "link_type"=>"none"),
                array("caption"=>"Organization",        "attrib"=>"company",            "link_type"=>"none"),
                array("caption"=>"Web Site",            "attrib"=>"wWWHomePage",        "link_type"=>"url")
                )
        );

Use * as the location in order to specify the default set of display columns for other areas of the directory. This set of columns will be used when listing search results.

Applying language-specific sorting rules for search results

Certain languages and countries have their own specific sorting rules (e.g. the sequence in which alphabetic characters follow each other). Where necessary, these rules can be selected through the $lc_collate setting in config.php:

$lc_collate = "<language>[_<territory>][.<codeset>][@<modifier>]";

In practice neither the code set or modifier are widely used, and in most cases only the language and territory need to be defined, for example:

$lc_collate = "en_US";

(a code set of UTF-8 will be assumed automatically.)

Applying custom LDAP filters to directory browsing and searching

If is possible to customize the LDAP queries which are used to fetch data from the directory, for example to display only records which have specific object classes or meet some other criteria.

Sites with Microsoft Active Directory/Exchange may wish to set up custom filters that test the msExchHideFromAddressLists and/or showInAddressBook attributes in order to exclude those entries which are hidden from Exchange's Global Address Book (GAL).

Directory browsing

When the user browses through the directory tree directory, the address book retrieves all records at the user's location (LDAP base search) that match the criteria specified by $browse_ldap_filter in config.php. The default LDAP filter is as follows, which allows all objects to be displayed:

$browse_ldap_filter = "objectClass=*";

Search results

Searches results are retrieved by carrying out an LDAP subtree search from the root of the address book (as specified in $ldap_server->base_dn). The expression to be searched for is based on the value of $search_ldap_filter in config.php. The default LDAP filter is as follows, which limits search results to objects representing people:

$search_ldap_filter = "(&(objectClass=person)___search_criteria___)";

The token ___search_criteria___ will be replaced with an expression to search the attributes listed in $search_ldap_attrib for the string entered by the user. For example if the user searched for "smith", the token would be replaced by:

(|(cn=smith)(mail=smith)(sn=smith)(displayName=smith)(company=smith)(title=smith))

To allow all object types to appear in search results, including organizational units (which typically do not have a cn attribute set), make the following changes to config.php:

• Set $search_ldap_filter = "___search_criteria___";
• Add ou to the list of attributes to be searched in $search_ldap_attrib.

Changing the layout and attributes shown for directory entries

You may want to customize the way in which address book entries are displayed - which fields/attributes are used and how they are laid out. If you wish, you can specify a different layout for each type of record.

As shipped, a default layout is provided which displays the address book entries in three "sections":

This layout is created by the configuration shown below. The layout will be used when displaying inetOrgPerson, user or contact records. Specifying * instead of a list of object classes means that the layout should be applied for all types of record (unless overridden by another definition applying to a specific record type). The layout itself is described as a comma-separated list of arrays.

$ldap_server->add_display_layout("inetOrgPerson,user,contact",array(
        array("section_name"=>"Personal",
                "attributes"=>array(
                        array("givenName",                      "Given Name",           "contact24.png","allow_view"=>false),
                        array("sn",                             "Surname",              "contact24.png","allow_view"=>false),
                        array("cn",                             "Full Name",            "contact24.png","allow_view"=>false),
                        array("displayName",                    "Preferred Name",       "contact24.png"),
                        array("mail",                           "E-mail",               "mail.png","allow_edit"=>false),
                        array("homePhone",                      "Home Phone",           "landline-phone.png"),
                        array("mobile",                         "Mobile Phone",         "cell-phone.png"),
                        array("wWWHomePage",                    "Web Page",             "internet.png"),
                        array("streetAddress:l:st:postalCode",  "Postal Address",       "address.png"),
                        array("c",                              "Country",              "country.png")
                        )
                ),

        array("section_name"=>"Business/Work","width"=>"50%",
                "attributes"=>array(
                        array("company",                        "Company",              "company.png"),
                        array("url",                            "Web Page",             "internet.png"),
                        array("telephoneNumber",                "Office Phone",         "landline-phone.png"),
                        array("facsimileTelephoneNumber",       "Office Fax",           "fax.png"),
                        array("title",                          "Job Title",            "org-role.png"),
                        array("department",                     "Department",           "org.png"),
                        array("physicalDeliveryOfficeName",     "Office",               "office.png"),
                        )
                ),

        array("section_name"=>"Additional Notes","new_row"=>true,"colspan"=>2,
                "attributes"=>array(
                        array("info")
                        )
                )
        ));

The givenName, sn and cn fields will not be visible except while the record is being edited. The mail field will be read only, and cannot be edited by end users.

Note: Some attributes must always be filled in with a value, for example many LDAP directories require record types representing a person to have the surname (sn) attribute filled in. If you want to be able to create new records through the Address Book then these attributes must be included in your directory entry layout so that users can fill them in.

• Configuring Users and Permissions describes how to allow creating/editing of records.
• Your directory service's schema documentation should list which attributes must have values.

You can define the following settings for each section:

Each attribute is described by either three or four items:

1. The name of the LDAP attribute (or list of attributes) to be displayed
2. The caption text to appear next to the attribute (or leave empty - "" - for no caption)
3. Icon image to appear next to the attribute (or leave empty for none)
4. Whether the attribute should be visible only while the record is being edited

A display field can be constructed from several LDAP attributes. To construct a field from multiple attributes, list the attributes in turn, separating them with one of the following symbols:

This facility is often used to display the lines of an address. (If the address attributes in your LDAP directory are used to store business addresses rather than personal addresses you may want to relocate the "Address" field from the "Personal" to the "Business/Work" section of the display.)

The following changes will be applied automatically:

• Any web page URLs and e-mail addresses will be presented as clickable HTML links.

• The postalCode attribute is followed by a "View Map" link that displays the corresponding location in Google Maps (provided that the postal code is valid and recognized).

• Images contained in the jpegPhoto, thumbnailPhoto or thumbnailLogo attributes will be scaled to the size indicated by $photo_image_size in config.php (96x96 pixels by default). If this value is not set then the images will be shown at their native size.

More information about displaying images can be found in the following section.

Displaying thumbnail photos or logos when browsing/searching the directory

By default, directory entries are displayed next to an icon representing their object class. Alternatively, the address book can be set to display an image - typically a photo or logo - representing the object instead. These images are retrieved from the following LDAP attributes (listed in order of priority):

The LDAP Address Book can also display PNG, GIF, WBMP, and GD2 images stored in these attributes, although JPEG is recommended in all cases. (WBMP is not the same thing as Microsoft Windows BMP, which is not supported.) Your PHP installation must have GD Graphics Library support enabled in order to display image attributes.

To display thumbnail photos/logos instead of "generic" icons, set one or both of the following options in config.php:

Beware that setting $enable_search_browse_thumbnail = true can result in slow page loading if there are a large number of images to be displayed.

A larger version of these images can be shown on the entry's detailed view by adding the jpegPhoto and/or thumbnailPhoto to the display layout (as described in the previous section). The following settings control the image size:

Android devices (at least as of version 4.4) will display the logo in preference to the photograph wherever a contact record includes both. To omit the logo from any records that have a photo (so that the photo will be used) when saving as vCard, set the following option in config.php:

$exclude_logo_if_photo_present = true;

Setting up phone numbers to be dialed when clicked on

Phone numbers appearing in the directory can be set to be displayed as HTML links rather than plain text, usually so that the number will be dialed when clicked on. The way that phone numbers are converted into URLs can be configured via the $phone_number_link_template setting in order to support different types of "click-to-dial" software.

The following setting allows many mobile phone browsers and other platforms that have built-in phone support to dial a number when clicked on:

$phone_number_link_template = "tel:___phone_number___";

The following setting will enable phone numbers to be dialed using Microsoft Skype or other software that handles the (non-standard) callto: URI scheme:

$phone_number_link_template = "callto://___phone_number___";

The following settings show how to place a call by passing the phone number to a separate web application such as Cisco WebDialer:

$phone_number_link_template = "https://cucm01/webdialer/Webdialer?destination=___phone_number___";
$phone_number_link_target = "_blank";

If defined, the $phone_number_link_target setting can be used to force the dialing application to open in a separate window/tab.

Changing the links shown in the page footer

The links shown in the page footer can be changed using the $site_footer_links option in config.php. The default set of links are defined as follows:

$site_footer_links = array(
        array("url"=>"doc/","text"=>"User Guide"),
        array("url"=>"https://sourceforge.net/projects/ldap-addr-book/",
                "text"=>"Get Source Code")
        );

Each link is represented by an array containing its URL and the name/label text to be displayed.

Note: The application's software license requires that you provide users with a means of obtaining a copy of the source code. As such you are recommended not to remove the "Get Source Code" link from the footer, although you may change it to a more appropriate URL where necessary (e.g. to a copy containing your own local changes, or if users have only limited connectivity to the external Internet that would prevent them from accessing the default location.)

Please see the license agreement for full information.

Changing the look and formatting of the address book

The appearance (such as font, text size, colors, etc) of the address book is defined in the file styles.css.

Take a look at the stylesheet file (styles.css)

You can change any of these settings (or add your own) by creating your own stylesheet file, called styles_local.css and adding your changes to it. (Although you could modify styles.css directly it will be easier to upgrade to future versions of the address book if you keep your changes separate by using styles_local.css instead.)

The stylesheet file is made up of selectors which specify which part of the user interface is to be changed, followed by style directives surrounded by {...} to define how it should appear. For example, if you wanted to display the address book in a different font you might add the following to your own styles_local.css file and change the font-family setting to your own choice of font:

body,table,textarea {
        font-family:serif;
}

Where you don't redefine a setting in styles_local.css (such as font-size:10pt in this example) the value from styles.css will continue to be used.

The following table summarizes the CSS selectors used within styles.css and which part of the address book's appearance they affect:

(* These may be split into two separate style declarations if you want to customize the search results and directory entry detail pages separately.)

You can also change the way in which an individual LDAP attribute is displayed by applying style directives to .ldap_attribute_<attrib>, where <attrib> is the attribute to be customized.

For example, adding the following to styles_local.css will cause home telephone numbers (stored in the homePhone attribute) to be displayed in italic:

.ldap_attribute_homePhone
{
        font-style:italic;
}

As a further example, adding the following to styles_local.css will display SSH public keys (stored in the sshPublicKey attribute) to be displayed in a fixed-width font and word-wrapped more appropriately:

.ldap_attribute_sshPublicKey
{
        font-family:monospace;
        word-break:break-all;
}

Changing the country code interpretation

Country codes in LDAP directories normally follow the ISO 3166 standard. The $country_code_standard setting in config.php contains a comma-separated list of which parts of the standard should be used by the Address Book. By default, only the ISO 3166-1 alpha2 officially assigned codes will be used:

$country_code_standard="official";

If your records use country codes for countries which have since been renamed or are no longer in existence, you may want to enable additional parts of ISO 3166, for example:

$country_code_standard="official,transitional,former";

This will enable the correct country names to be displayed, and for the older country codes to be selected from drop-down lists. The following table summarizes the available country code standards:

The following alternative (non-standard) coding schemes are also supported if needed for specialist and/or legacy applications:

Extending and modifying the schema

The schema is a set of information which the Address Book uses to display and edit the different types of records. The schema information is stored inside the Address Book's schema subdirectory. The set of files that is loaded and used depends on the server type and/or on additional entries in the configuration file. The default set schema files used for each server type are:

You can load an additional schema file using $ldap_server->add_schema() from the configuration file. For example, the following commands will connect to an OpenLDAP server and allow objects and attributes from the Mozilla Address Book schema to be used (and displayed correctly) in addition to the default schemas:

$ldap_server = new ldap_server("openldap","dc=example,dc=org","ldap.example.org");
$ldap_server->add_schema("mozilla");

The following schema files are supplied with the Address Book. (Future versions may include additional files.)

Defining your own objects and attributes

Unless configured otherwise, the Address Book will display unrecognized object and attribute classes as follows:

• Object classes will be displayed as a "leaf" object (i.e. not a folder). A generic icon will be displayed next to the object (unless thumbnail display is turned on and an image is available from the jpegPhoto, thumbnailPhoto or thumbnailLogo attribute.) Users will not be able to create new objects of this class.
• Attributes will be displayed and edited as a single text value. (If the attribute is multi-valued, only the first value will be displayed or saved after editing.)

This default behavior can be modified and extended by defining the object or attribute class (or enabling a schema file that defines it).

The following example shows how to define a container object class (similar to the one defined in the microsoft schema). The class which should appear as a folder - similar to an OU - so that users can navigate into it and see further objects inside. Users with allow_create permission should be able to create container objects from within the Address Book's user interface:

$ldap_server->add_object_class("container",array(
	"icon"=>"folder.png",
	"is_folder"=>true,
	"display_name"=>"Container",
	"can_create"=>true)
	);

The following example defines sshPublicKey as a multi-valued text attribute (data type text_list) intended to hold a list of the user's SSH public keys.

$ldap_server->add_attribute_class("sshPublicKey",array(
	"data_type"=>"text_list",
	"display_name"=>"SSH Public Key")
	);

Existing object and attribute classes can be deleted as follows:

delete_object_class($name);

delete_attribute_class($name);

(The main use of this is to delete an existing class so that you can redefine it with different settings.)

Object class schema settings

The following settings can be used in object class definitions:

The attribute used in the object's name (the RDN attribute) must always have a value and does not need to be listed in required_attribs.

Attribute class schema settings

The following settings can be used in attribute class definitions:

Attribute data types

The following values can be used in an attribute class's data_type setting in order to indicate the type of data and how it should be displayed/edited:

Using auxiliary object classes

Auxiliary object classes can added to an LDAP record in order to extend its capabilities. For example, the simpleSecurityObject auxiliary class can be added to a contact object. This adds a new attribute for storing a password, allowing the record to be used as a user account for logging into the LDAP directory or an LDAP-enabled application.

Display layouts can be defined for auxiliary classes in the same way as "normal" object classes. Adding the following setting to the configuration file (config.php) will cause the LDAP Address Book to include the display layout of each auxiliary class whenever it displays an object that uses them:

$append_auxiliary_layouts = true;

You can use the extensions schema setting to add auxiliary class automatically whenever new objects are created. As an example, adding the following settings to the configuration file will enable users to create device objects and add IP addresses for each device.

$ldap_server->modify_object_class("device","can_create",true);
$ldap_server->modify_object_class("device","extensions","ipHost");

When viewing these device records, the top part of the display layout (with heading "Device Information") is defined for the device, whilst the bottom part of the display layout (with heading IP Address Information) comes from the ipHost auxiliary class.)

Granting allow_extend permission will allow users to add other auxiliary classes to records.

Current versions of the LDAP Address Book cannot remove auxiliary classes from a record.

Linking External Records to the Address Book

The configuration function link_ldap_dn() can be used to add Address Book records from another directory location (DN), outside of the main "tree" of records that make up the address book:

$ldap_server->link_ldap_dn(<link-location-dn>,
        <link-destination-server>,<link-destination-dn>,
	<link-method>,<link-name>,<link-object-class>);

This function can be used in place of LDAP server facilities such as aliases, referrals or proxies.

The parameters passed to link_ldap_dn() are used as follows:

• <link-location-dn> indicate the location in the Address Book where the additional records should be added.

• <link-destination-server> and <link-destination-dn> indicate the location of the records which should be added.

  • The destination server should be set to $ldap_server when the records are located on the Address Book's main (root) LDAP server.
  • The additional steps involved in creating a multi-server Address Book are described later in this document.

• <link-method> indicates how the record or records at <link-destination-dn> should appear in the Address Book. It can be set to either "folder" or "contents".

  • "folder" - adds <link-destination-dn> to the Address Book. It appears as a folder which users can browse into to view the records inside.
  • "contents" - adds the contents of <link-destination-dn> to the Address Book, merging them with any existing records so that they appear as a single list.

• <link-name> and <link-object-class> are used when <link-method> is set to "folder", in order to customize the record's appearance:

  • <link-name> changes the name of the record, replacing the actual name of <link-destination-dn>.
  • <link-object-class> changes the object class (and icon) of the record, replacing the actual object class of <link-destination-dn>.

<link-name> or <link-object-class> can be omitted if the name and object class don't need to be changed. To change the object class without affecting the name, use null in place of <link-name>.

Linking to additional records within a single LDAP server

Many Microsoft Active Directory installations have OU structures that were designed to meet systems administration requirements, but which are less suitable for browsing by end users. The screenshot below illustrates a common layout approach:

In this design, each department's directory records are stored in a separate set of OUs. Each department's OU is further divided in order to keep user accounts, groups and computer objects separate from each other.

The following configuration fragment shows how to create a more straightforward Address Book layout for users to browse, using records from the "Users" OUs inside each department:

$ldap_server = new ldap_server(
        "ad",
        "ou=Address Book,ou=Corporate HQ,dc=example,dc=org",
        "ldap.example.org",
        389
        );

$ldap_server->link_ldap_dn("ou=Address Book,ou=Corporate HQ,dc=example,dc=org",
        $ldap_server,"ou=Users,ou=Management,ou=Corporate HQ,dc=example,dc=org",
        "folder","Management Staff");

$ldap_server->link_ldap_dn("ou=Address Book,ou=Corporate HQ,dc=example,dc=org",
        $ldap_server,"ou=Users,ou=Marketing,ou=Corporate HQ,dc=example,dc=org",
        "folder","Marketing Staff");

$ldap_server->link_ldap_dn("ou=Address Book,ou=Corporate HQ,dc=example,dc=org",
        $ldap_server,"ou=Users,ou=Human Resources,ou=Corporate HQ,dc=example,dc=org",
        "folder","Human Resources Staff");

$ldap_server->link_ldap_dn("ou=Address Book,ou=Corporate HQ,dc=example,dc=org",
        $ldap_server,"ou=Users,ou=Finance,ou=Corporate HQ,dc=example,dc=org",
        "folder","Finance Staff");

An empty OU called "Address Book" should be created under "Corporate HQ".

End result:

The "contents" link method can be used to merge together the "users" OUs from more than one department. The following configuration fragment shows how to create a combined folder for "Management and Finance Staff":

$ldap_server->link_ldap_dn("ou=Management and Finance Staff,ou=Address Book,ou=Corporate HQ,dc=example,dc=org",
        $ldap_server,"ou=Users,ou=Management,ou=Corporate HQ,dc=example,dc=org",
        "contents");

$ldap_server->link_ldap_dn("ou=Management and Finance Staff,ou=Address Book,ou=Corporate HQ,dc=example,dc=org",
        $ldap_server,"ou=Users,ou=Finance,ou=Corporate HQ,dc=example,dc=org",
        "contents");

An empty OU called "Management and Finance Staff" should be created under "Address Book".

End result:

Creating a multi-directory address book

The link_ldap_dn() function can be used to include address book records from other LDAP servers, allowing you to create multi-directory address book.

This example shows how to create an address book that spans several LDAP directories, such as might exist in a large multinational organization.

• ldap.example.org - OpenLDAP server which will store the top-level address book structure, plus records for external suppliers and other contacts
• edir.example.org - eDirectory server containing user accounts for staff in the main organization
• ad.eu.example.org - Active Directory server containing user accounts for staff in the European subsiduary

Connecting to additional servers

First, define connections to the three directories which contain the Address Book records:

$ldap_server = new ldap_server(
        "openldap",                     // LDAP server type
        "ou=Address Book,dc=nodomain",  // base DN
        "ldap.example.org",             // host name/IP address/URL
        389                             // port number
        );

$ldap_server_corporate = new ldap_server(
        "edir",                         // LDAP server type
        "o=example",                    // base DN
        "edir.example.org",             // host name/IP address/URL
        389                             // port number
        );

$ldap_server_eu = new ldap_server(
        "ad",                            // LDAP server type
        "dc=ad,dc=eu,dc=example,dc=org", // base DN
        "ad.eu.example.org",             // host name/IP address/URL
        389                              // port number
        );

The LDAP server which hosts the top-level of the Address Book should be defined first, and should be stored in the variable $ldap_server.

Any customized record display layouts, schema definitions and other configuration changes will need to be applied for each individual server.

Defining users and permissions for each server

Each LDAP server has a user account called ldap-addr-book-browse (in an appropriate OU) which has been granted read-only access to the directory. These user accounts should be used to provide read-only access to the Address Book without having to log on:

$ldap_server->add_user("__ANONYMOUS__",
        array(
                "ldap_dn"=>"cn=ldap-addr-book-browse,ou=Users,dc=nodomain",
                "ldap_password"=>"XXXX",

                // Permissions granted to anonymous users:

                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_folder_info"=>true

        ));

$ldap_server_corporate->add_user("__ANONYMOUS__",
        array(
                "ldap_dn"=>"cn=ldap-addr-book-browse,o=example",
                "ldap_password"=>"YYYY",

                // Permissions granted to anonymous users:

                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_folder_info"=>true
        ));

$ldap_server_eu->add_user("__ANONYMOUS__",
        array(
                "ldap_dn"=>"cn=ldap-addr-book-browse,cn=Users,dc=ad,dc=eu,dc=example,dc=org",
                "ldap_password"=>"ZZZZ",

                // Permissions granted to anonymous users:

                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_folder_info"=>true
        ));

Users will also be able to log in to the Address Book by name, allowing them to access additional functionality (such as editing). During the login process, each server's ldap-addr-book-browse account will be used to look up the user's group membership so that group-based Address Book permissions can be assigned:

$ldap_server->dn_search_base = "dc=nodomain";
$ldap_server->dn_search_user = "cn=ldap-addr-book-browse,ou=Users,dc=nodomain";
$ldap_server->dn_search_password = "XXXX";

$ldap_server_corporate->dn_search_user = "cn=ldap-addr-book-browse,o=example";
$ldap_server_corporate->dn_search_password = "YYYY";

$ldap_server_eu->dn_search_user = "cn=ldap-addr-book-browse,cn=Users,dc=ad,dc=eu,dc=example,dc=org";
$ldap_server_eu->dn_search_password = "ZZZZ";

The dn_search_base setting specifies where to search for user accounts, and is needed if the user accounts are stored in a separate area of the directory to the the Address Book itself.

Logging into the Address Book as admin should grant additional permissions to $ldap_server and to $ldap_server_eu.

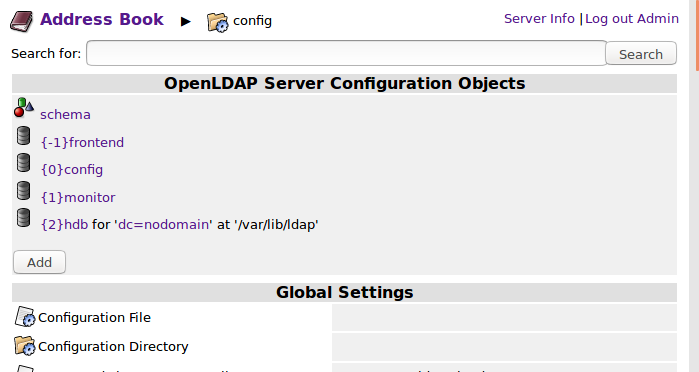

An admin user account should be created on $ldap_server and granted the necessary permissions, e.g. as per the following LDIF data:

dn: olcDatabase={2}hdb,cn=config
changetype: modify
replace: olcAccess
olcAccess: {0}to * by dn.exact=gidNumber=0+uidNumber=0,cn=peercred,cn=extern
 al,cn=auth manage by * break
olcAccess: {1}to * by dn.exact=cn=admin,dc=nodomain manage
olcAccess: {2}to * by * read

Many Linux distributions will configure an admin or manager user automatically when OpenLDAP is installed. (Once the admin user has the necessary read/write access to object(s) in the cn=config container they will be able to manage directory permissions using the Address Book's web interface. Access to cn=config is not usually enabled by default.)

The following configuration statement will the corresponding admin access to the Address Book:

$ldap_server->add_user("admin",
        array(
                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_folder_info"=>true,
                "allow_create"=>true,
                "allow_edit"=>true,
                "allow_move"=>true,
                "allow_delete"=>true,
                "allow_export"=>true,
                "allow_export_bulk"=>true,
                "allow_system_admin"=>true
        ));

In this example, the Address Book's admin user will not have read/write access to the directory on $ldap_server_corporate, however they will be allowed to export its Address Book records (into vCard files). Access will use the same ldap-addr-book-browse user account and stored password as anonymous users.

$ldap_server_corporate->add_user("admin",
        array(
                "ldap_dn"=>"cn=ldap-addr-book-browse,o=example",
                "ldap_password"=>"YYYY",

                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_folder_info"=>true,
                "allow_export"=>true,
                "allow_export_bulk"=>true
        ));

The admin user will receive full read/write access to the directory on $ldap_server_eu. They will log on to it as ldap-addr-book-admin, which must have the same password as the admin user itself.

$ldap_server_eu->add_user("admin",
        array(
                "ldap_dn"=>"cn=ldap-addr-book-admin,cn=Users,dc=ad,dc=eu,dc=example,dc=org",

                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_folder_info"=>true,
                "allow_create"=>true,
                "allow_edit"=>true,
                "allow_move"=>true,
                "allow_delete"=>true
                "allow_export"=>true,
                "allow_export_bulk"=>true,
                "allow_system_admin"=>true
        ));

If you grant Address Book permissions based on group memberships, the groups must be located on the same server as the user.

Configuring the address book structure

In this example:

• The user accounts within $ldap_server_eu are organized into OUs for each country that contains a branch office. These should appear in the Address Book as countries.
• User accounts within $ldap_server_corporate are organized into separate OUs for each department. These should appear in the Address Book under the country "United States".
• External contact details (e.g. for suppliers/partner organizations) should be displayed in a separate top-level OU.
• A record for the IT helpdesk (which is used by staff in all countries) will be stored at the top-level.

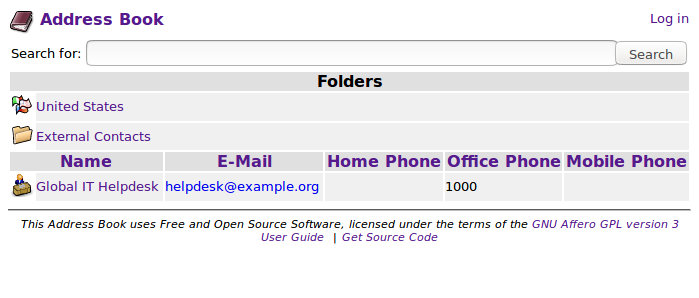

First, log in to the Address Book as admin and create the top-level records and other containers which will be stored directly in $ldap_server: "United States", "External Contacts" and "Global IT Helpdesk".

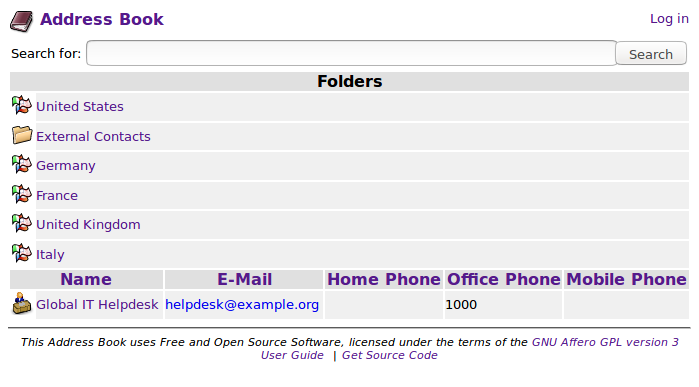

Finally, configure the links to $ldap_server_eu and $ldap_server_corporate.

$ldap_server->link_ldap_dn("ou=Address Book,dc=nodomain",
        $ldap_server_eu,"ou=Users,ou=London,dc=ad,dc=eu,dc=example,dc=org",
        "folder","GB","country");

$ldap_server->link_ldap_dn("ou=Address Book,dc=nodomain",
        $ldap_server_eu,"ou=Users,ou=Paris,dc=ad,dc=eu,dc=example,dc=org",
        "folder","FR","country");

$ldap_server->link_ldap_dn("ou=Address Book,dc=nodomain",
        $ldap_server_eu,"ou=Users,ou=Berlin,dc=ad,dc=eu,dc=example,dc=org",
        "folder","DE","country");

$ldap_server->link_ldap_dn("ou=Address Book,dc=nodomain",
        $ldap_server_eu,"ou=Users,ou=Rome,dc=ad,dc=eu,dc=example,dc=org",
        "folder","IT","country");

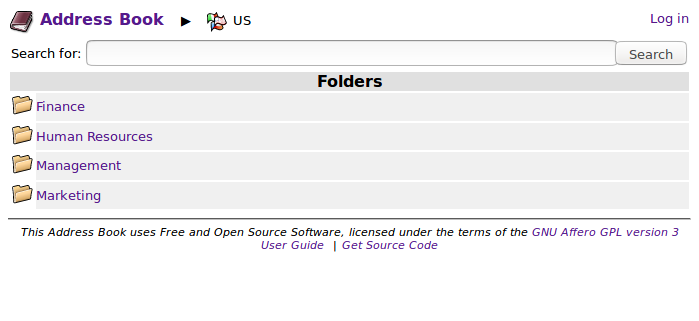

$ldap_server->link_ldap_dn("c=US,ou=Address Book,dc=nodomain",
        $ldap_server_corporate,"ou=Management,o=example",
        "folder","Management");

$ldap_server->link_ldap_dn("c=US,ou=Address Book,dc=nodomain",
        $ldap_server_corporate,"ou=Marketing,o=example",
        "folder","Marketing");

$ldap_server->link_ldap_dn("c=US,ou=Address Book,dc=nodomain",
        $ldap_server_corporate,"ou=Human Resources,o=example",
        "folder","Human Resources");

$ldap_server->link_ldap_dn("c=US,ou=Address Book,dc=nodomain",
        $ldap_server_corporate,"ou=Finance,o=example",
        "folder","Finance");

Organizational units from $ldap_server_eu are shown as countries at the top-level of the Address Book. (The country codes are automatically replaced with the corresponding country names.)

Organizational units from $ldap_server_corporate are shown as folders within "US"/"United States":

Troubleshooting

Configuration Reference

$site_footer_links = array(
        array("url"=>"doc/","text"=>"User Guide"),
        array("url"=>"https://sourceforge.net/projects/ldap-addr-book/",
                "text"=>"Get Source Code")
        );

$ldap_server->add_user("__ANONYMOUS__",
        array(
                "ldap_dn"=>"CN=ldap-browse,O=example",
                "ldap_password"=>"foobar",
                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true
        ));
$ldap_server->add_user("__DEFAULT__",
        array(
                "allow_browse"=>true,
                "allow_search"=>true,
                "allow_view"=>true,
                "allow_create"=>true,
                "allow_edit"=>true,
                "allow_delete"=>true
        ));

$search_result_columns = array(
        array("caption"=>"Name",                "attrib"=>"sortableName",       "link_type"=>"object"),
        array("caption"=>"E-Mail",              "attrib"=>"mail"),
        array("caption"=>"Office Phone",        "attrib"=>"telephoneNumber"),
        array("caption"=>"Organization",        "attrib"=>"company")
        );

// Display information about a printer in Active Directory

$ldap_server->add_display_layout("printQueue",array(
    array("section_name"=>"Shared Printer",
        "attributes"=>array(
            array("printerName",                    "Printer",              "printer.png"),
            array("location",                       "Location",             "address.png"),
            array("driverName",                     "Driver/Model",         "generic24.png"),
            array("description",                    "Description",          "description.png")
            )
        ),

    array("section_name"=>"Capabilities","width"=>"50%",
        "attributes"=>array(
            array("printColor",                     "Color Printing",       "generic24.png"),
            array("printStaplingSupported",         "Stapling",             "generic24.png"),
            array("printDuplexSupported",           "Double-Sided Printing","generic24.png"),
            array("printRate",                      "Printing Speed (PPM)", "generic24.png"),
            array("printMaxResolutionSupported",    "Max. Resolution (DPI)","generic24.png")
            )
        ),

    array("section_name"=>"Print Server","new_row"=>true,"colspan"=>2,
        "attributes"=>array(
            array("serverName",                     "Host Name",            "computer.png"),
            array("uNCName",                        "Printer UNC Path",     "domain24.png")
            )
        ),

    array("section_name"=>"Paper Available","new_row"=>true,"colspan"=>2,
        "attributes"=>array(
            array("printMediaReady")
            )
        )
    ));

$ldap_server->add_object_class("container",array(
	"icon"=>"folder.png",
	"is_folder"=>true,
	"display_name"=>"Container",
	"can_create"=>true)
	);

$ldap_server->add_attribute_class("sshPublicKey",array(
	"data_type"=>"text_list",
	"display_name"=>"SSH Public Key")
	);
